Recommend A 60 Tons Rear Tipping Semi Trailer For You

2022-01-17

The main outstanding features of the rear tipping semi trailer are large loading capacity and strong transportation capacity,which are mainly suitable for short- and medium-distance transportation of bulk particulate cargo such as coal,ore,and building materials.

Dump semi trailers can be divided into two categories according to their purposes:one type is heavy and super-heavy dump semi trailers for off-road transportation;they are mainly used for transportation tasks such as large mines and engineering projects,and are usually used in conjunction with excavators.The other is a light and medium-sized ordinary dump semi trailer for road transportation;it is mainly responsible for the transportation of loose goods such as sand,soil,bricks,etc.,and is usually used in conjunction with a loader.

China YuHang Vehicles dump semi trailer has different load requirements such as 40 tons/50 tons/60 tons/80 tons/100 tons/120 tons,etc;it can be equipped with 2/3/4/5/6 axles.of course,along with the trailer as the axles increases,the load also increases.At the same time,we have rectangular rear tipping semi trailers and U-shaped rear tipper trailers for your choice.

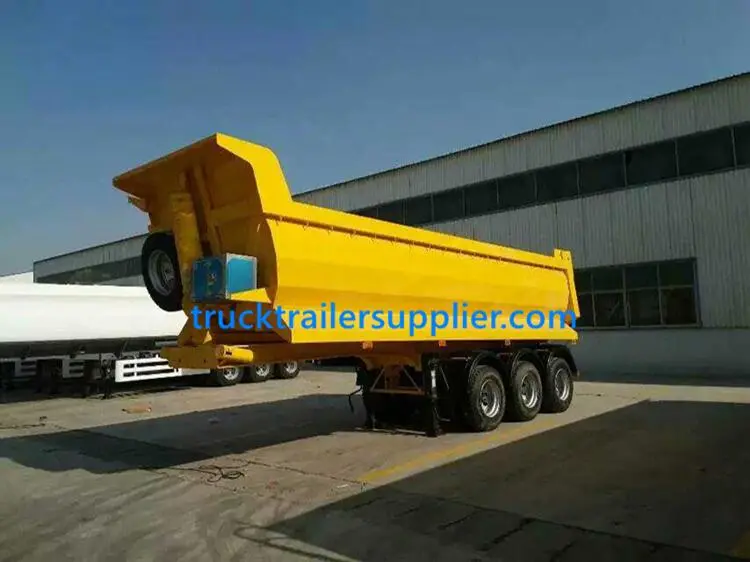

                                                                                   60 ton rear tipping semi trailer for sale

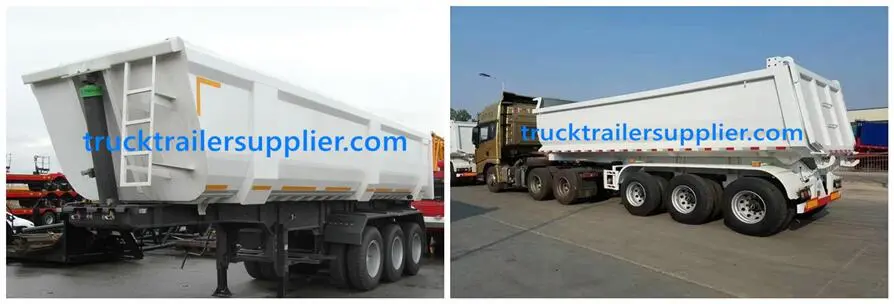

                                                                    3 axle U shaped rear tipping semi trailer for sale in Vietnam

Dump Semi Trailer Structure:

Frame:The frame is a frame structure composed of longitudinal beams,cross beams and side beams.The longitudinal beams are made of 16Mn or Q345 low-alloy high-quality steel plates and processed into "I"-shaped beams by automatic submerged arc welding;the beams are made of 16Mn Or Q235 steel plate is pressed into a groove shape;the side beam is a hot-rolled ordinary channel steel or a corresponding specification of 16Mn or Q235 plate bending parts.

Carriage:The container board adopts a three-sided structure consisting of a side container board and a rear container board.The rear container board can be opened flexibly and conveniently.The side beams of the frame are welded with rope hooks to secure the cargo and the rain cover.The floor of the carriage is usually laid with 3mm thick steel plate.The carriage can be loaded with large cargos.

Suspension:The suspension device of the dump semi trailer adopts a non-independent steel plate stamped rigid suspension (optional air suspension),which is made of tandem leaf springs and suspension;it has strong rigidity and hardness to support load and buffer shock.

Axle:Usually use high-quality domestic and foreign brand axles such as BPW,SAF,FUWA,etc.,which have the advantages of good braking performance,large carrying capacity,reasonable structure and reliable performance.The axle is connected with the suspension device and the frame through a leaf spring and a tie rod to support and transmit force between the frame and the wheels.

Leaf Spring:The label configuration of the leaf spring is generally 10 pieces of 90x13 or 8 pieces of 90x16 or additional 4 pieces of leaf springs (except for special requirements of users),which have the advantages of large load-bearing capacity,high strength, and good elasticity.

Electrical System:The rated voltage of the electrical equipment of the whole vehicle is 24V,the circuit system is single-wire system,the negative pole is grounded,the front end of the semi trailer is equipped with a power plug,the middle part is equipped with a combination of side signs and side turn indicator lights,and the rear of the semi trailer is installed There are driving,brake,reversing lights,license plate lights,and equipped with standard light reflectors and anti-fog lights.

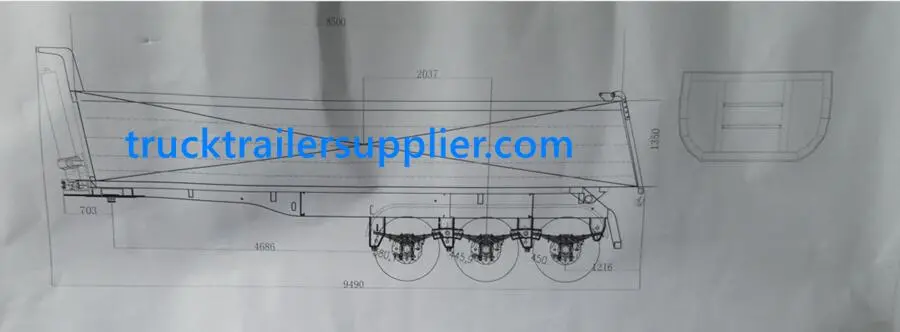

                                               Design drawing display of 3 axle rear tipping semi trailer

Company Strength:

"Innovation,creation,and brand creation" is the strategic thinking that YuHang Automobile has been adhering to.Work with all kinds of peers and downstream customers to work together for the healthy development of the logistics and transportation industry.

At present,the company has domestic first-class production equipment and the most advanced production line,and it is in a leading position in the same industry.The company pays attention to the research and development of new products and product upgrades,and has technical information stations in more than 50 regions in more than 20 countries around the world to facilitate timely access to the most advanced product information in the world.

The company has a total annual output of 5,000 units,including about 1,500 various types of rear tipping semi trailers.The products are exported to 53 countries including:Russia,Mongolia,Myanmar,Vietnam,Philippines,Nigeria,Senegal and Tanzania.The company has an after-sales service department,with dedicated after-sales full-time personnel,and promises to give answers and solutions to problems within 24 hours.

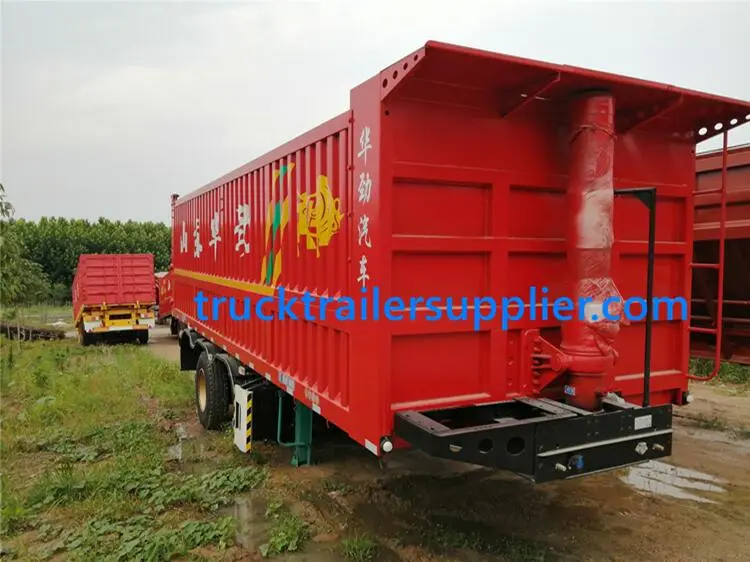

                                                                 Physical display of 3 axle dump semi trailer
