Description:

The 40 foot fence trailer is our very popular model, which has a wide range of applications and is an important medium and long-distance road freight transportation vehicle.

Fence truck trailers manufactured by YUHANG factory can be used to transport containers or other bulk goods, such as: fruits, vegetables, grain, express delivery, coal, daily necessities.

2 axle, 3 axle, 4 axle, 5 axle, 20ft, 40ft, 48ft, 53ft fence cargo trailer for sale, the loading capacity is 30-120 tons for you to choose. Reasonable structural design, simple and flexible operation.

We have an experienced technical service team who can design and customize fence trailers according to your special transportation needs, which are durable in quality and comply with local laws and regulations.

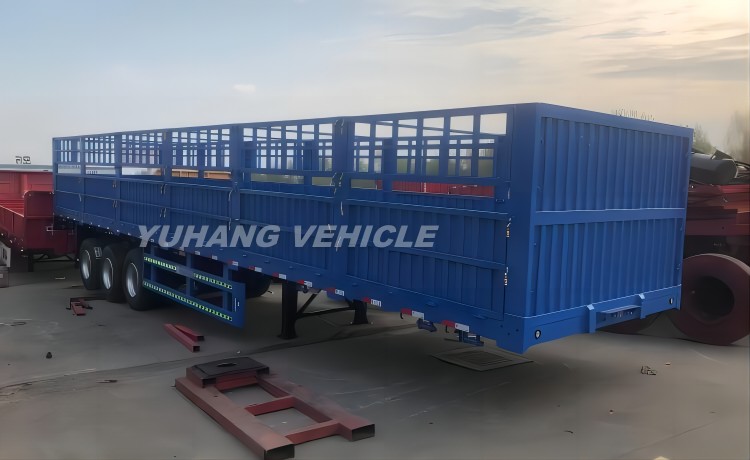

40 foot fence trailer for sale

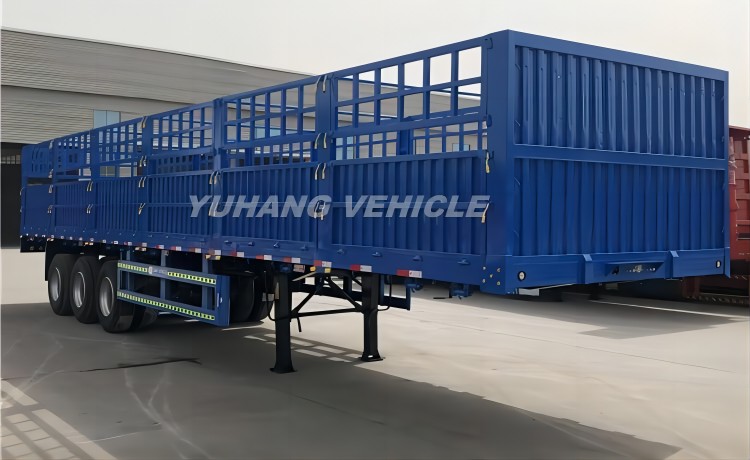

3 axle fence cargo trailer with best price

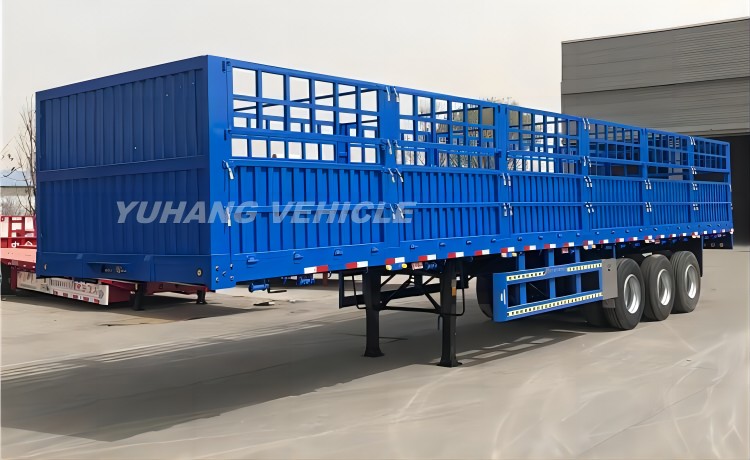

YUHANG brand fence trailers will be send to customer

Advantages:

1. Our fence trailers have been successfully sold to markets in Africa, Southeast Asia, South America, and the Middle East, and have accumulated a large number of customer cases and vehicle operation safety data.

2. The frame is a space frame structure welded by longitudinal beams and cross beams, which has higher bearing strength, longer service life, and no deformation or breakage.

3. Fully automatic submerged arc welding technology, the weld seam is uniform and full without flaws, the solder joints are tight and reliable, and the welding quality is high, which further improves the safety performance of the vehicle.

4. The special anti-slip and wear-resistant tires produced by the factory are used, which can safely drive 200,000 kilometers, are resistant to high temperature, wear and tear, and prevent cracking.

About Us:

YUHANG 40 foot fence trailer is easy to operate, low investment cost, strong loading capacity, high transportation efficiency, creating more profit value for customers. Welcome to contact us to get the latest exclusive quotation.

Specification:

Dimension(mm): 13,000x2,800x3,600mm

Tare Weight: about 8 tons

Trailer Sides: 1,800mm

Loading Capacity: ≤60 tons

Axles: 3 axle*13t/14/16t*FUWA/ BPW brand

Tire: 12 units*12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand

Main Beam: height: 500mm, upper plate: 14mm, middle plate: 8mm, bottom plate: 16mm, material: Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve

ABS: optional

Light: LED light

Voltage: 24V

Painting: 1 layer of anticorrosive primer and 2 layers of top coats
